Hastelloy C276 2PC Ball Valve, 3 Inch, 600 LB, Soft Seat, RF
Key Specifications / Features
Model no.: JSC-20241009-FBV-05
Hits: 3
This Two Piece Floating Ball Valve is constructed from Hastelloy C276 and designed for 3-inch applications with a pressure rating of Class 600 LB. It features a full bore design, a soft seat for optimal sealing, and a bolted bonnet for easy maintenance. Lever operated, it comes with RF flanged ends, making it suitable for various demanding industrial applications.
Request a quote
Tags
Detail Information
Hastelloy C276 Floating Ball Valve
Valve description: Ball valve, floating type, soft seat, bolted bonnet, two pieces, Hastelloy C276, full bore, anti-static, fire-safe
Body material: Hastelloy C276
Nominal diameter: DN80, 3 Inch
Nominal class: PN100, Class 600 LB
Soft seat: RPTFE
Face to face: ASME B16.10
Mode of operation: lever
Test and inspection: API 598
End connection: RF Flanged
Hastelloy valves provide superior service life and performance compared to standard SS 304/316 valves, thanks to their excellent corrosion resistance. They are widely used in the chemical, desalination, petrochemical, biotech, and pharmaceutical industries.
Common types of Hastelloy valves include Hastelloy B2, B3, C22, and C276, with corresponding UNS alloy designations such as N10665, N10276, N06022, N10675, and N06455. DIN specifications include 2.4617, 2.4600, 2.4602, and 2.4819. The most frequently used cast Hastelloy forms for valves are ASTM A494 CW12MW and A494 CX-2MW.
We manufacture the following ball valves:

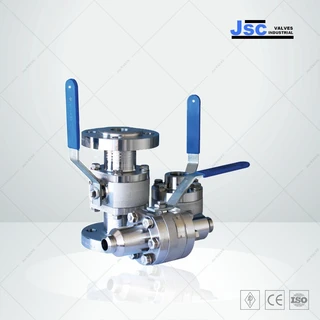

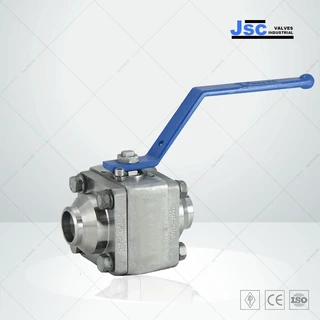

Side Entry Design Forged Ball Valves

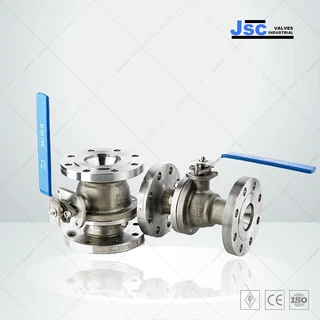

End Entry Floating Ball Valve
Long Pattern Forged Ball Valve
Short Pattern Forged Ball Valve
SIZE RANGE AND PRESSURE CLASS
Size Range: 1/2 Inch to 8 Inch (DN15-DN200)
Pressure Range: Class 150 LB to 600 LB (PN16-PN100)
DESIGN STANDARDS
Design / Manufacture: MFG, API 608, ISO 17292, EN 12516, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351
Face to Face Length (Dimension): MFG, API 6D, ASME B16.10, EN 558-1, GB/T 12221, DIN 3202
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208, BS 6755-1
TECHNICAL FEATURES
1. Compliance Standards
ASME B16.34
API 608, API 6D, BS5351
API 607 6th Edition Fire-Safe
NACE MR0175 compliant
2. Design and Functionality
Submerged packing system with direct mount actuation
ISO actuator mounting pads on all sizes
Swing-out construction for easy installation
Anti-static device and blowout-proof stem
3. Materials and Durability
Forged materials for reliable quality
ASTM A961 corrosion protective coating
Second-generation PTFE seats for higher temperature resistance
4. Additional Features
Locking stainless steel handles with a locking bracket
Electrically grounded ball and stem
Body studs and nuts for easy disassembly
