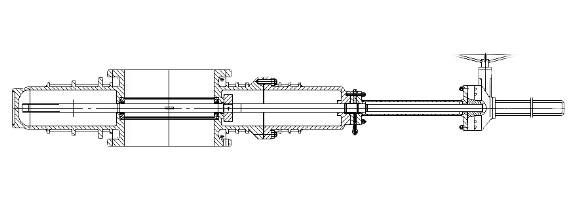

Analysis of the Internal Structure of Flat Gate Valves
On this page
Flat gate valves are essential components in modern fluid control systems, functioning as critical devices for regulation and isolation. Their internal structure must provide excellent sealing performance, durability, ease of operation, and safety. This article will delve into the main structural components of flat gate valves to enhance understanding of their working principles and value in various applications.
Design of the Valve Seat
The design of the valve seat is crucial for flat gate valves. It features an O-ring seal and a floating valve seat structure that applies preloading, enabling bidirectional sealing. This design ensures smooth operation during opening and closing, as well as unobstructed fluid flow.
1. Structural Characteristics
The valve seat incorporates an O-ring seal with a floating design that achieves bidirectional sealing at both the inlet and outlet. This design reduces the torque required for valve operation to only half that of standard valves, making it quicker and easier to operate, particularly in high-frequency environments.
2. Fluid Flow
When fully open, the flow path exhibits a smooth, linear structure, resulting in minimal flow resistance and almost no pressure loss. This feature not only enhances fluid capacity but also allows for efficient operation in specific applications, such as in lint removal pipelines, thereby reducing energy consumption on external equipment.
Self-Sealing Packing Structure
The self-sealing packing structure of flat gate valves employs innovative design to maintain excellent sealing performance over extended use. Compared to traditional graphite packing, the improved packing structure provides enhanced sealing reliability and significantly reduces leakage risk.
1. Performance Advantages
The self-sealing packing offers superior sealing capabilities compared to traditional graphite options. The packing sealing surface is injected with grease, ensuring zero leakage even under high pressure, addressing common issues of dripping and leaking seen in general valves. This design improves reliability and reduces maintenance costs.
2. Safety
The valve can automatically relieve high pressure from the internal cavity when closed, preventing potential explosion or leakage risks and ensuring safe operation. This feature significantly enhances system safety, especially in various industrial applications, including oil and chemical sectors.
Fully Enclosed Structure
The flat gate valve features a fully enclosed structure that provides excellent protective performance, making it suitable for various complex working environments.
1. Protective Performance
The fully enclosed design effectively shields internal components from external environmental influences, ensuring reliable performance even under harsh weather conditions. The seat's sealing structure utilizes an elastic preload design, maintaining tight contact with sealing materials to effectively prevent debris intrusion.
2. Self-Cleaning Function
The self-cleaning function of the valve seat helps prevent wear caused by direct airflow erosion. This design extends the service life of the seat and reduces maintenance frequency, ensuring consistent sealing performance over time.
Materials and Manufacturing
The materials and manufacturing processes of flat gate valves directly affect their performance and lifespan.
1. Material Selection
The valve seat and other key components are made from high-strength materials with good lubrication properties, ensuring stable long-term performance. The design also considers maintenance convenience, allowing for repairs and replacements without needing to disassemble the entire valve.
2. Structural Stability
The aluminum bronze yoke and sleeve feature needle thrust bearings that reduce operating torque and enhance valve stability. Additionally, the threaded length extends to the support frame, reinforced with pins and spot welding, increasing structural strength and ensuring stable operation under high pressure and flow conditions.
Sealing and Maintenance
Sealing performance is critical for flat gate valves, which utilize PTFE sealing surfaces and metal-to-metal sealing designs to ensure zero leakage.
1. Sealing Design
The pressure-sealed structure is straightforward, featuring segmented retaining rings and silver-plated low-carbon steel gaskets for easy disassembly and effective sealing of the valve cap. The seat ring is welded perpendicular to the flow path, facilitating routine maintenance and inspection to maintain long-term functionality.
2. Actuation Mechanisms
The valve can be equipped with electric, hydraulic, or pneumatic actuators as needed, making it suitable for various operational environments. For DN300 and below, a manual handwheel is standard; for DN350 and above, an inclined gear operating mechanism is used. The stop device on the overall cast support positions the assembled support valve flap, enhancing seat stability and reliability.
Dual Sealing Design
The dual sealing design of flat gate valves is a key highlight, aimed at ensuring maximum sealing reliability.
1. Sealing Materials
The valve features a metal-to-metal sealing design with an external grease injection structure, allowing grease to be injected into the valve seat to achieve zero leakage standards. The seat's sealing surface is embedded with PTFE material, providing a dual sealing effect between metal and PTFE, ensuring stable sealing performance.
2. Cleaning Function
The PTFE sealing surface effectively removes contaminants from the valve flap, ensuring cleanliness during opening and closing operations, thus reducing the risk of sealing failure due to dirt.
Lifespan and Safety
Thanks to its superior design and material selection, flat gate valves offer exceptional lifespan and safety.
1. Design Advantages
The gate maintains a tight fit with the sealing surface when fully open or closed, protecting the seal from direct erosion by the medium and extending its lifespan. The valve is also equipped with indicator rods or observation windows, allowing users to monitor the opening and closing status in real time, enhancing operational convenience and safety.
2. Application Range
Due to their excellent sealing performance and reliable operation, flat gate valves are widely used in the oil, chemical, power, and water supply industries. Their importance in various industrial processes cannot be overlooked, as they enhance production efficiency and ensure the safe and stable operation of systems.
Conclusion
Flat gate valves, with their unique design, superior materials, and excellent performance, ensure efficient fluid control in various industrial environments. These valves not only offer outstanding sealing and durability but also demonstrate unique advantages in maintenance convenience and safety. With advanced technology and structural integrity, flat gate valves are undoubtedly indispensable in modern industrial fluid control systems, providing efficient, safe, and economical solutions.
