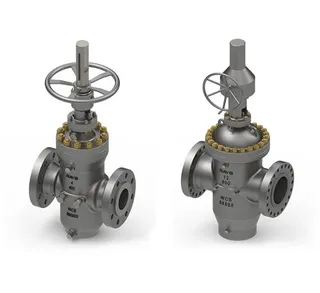

Differences Between Single Disc and Double Disc Gate Valves

Double disc gate valves and single disc gate valves are two primary types of industrial valves, each with its own set of advantages and disadvantages in terms of design, functionality, and application scenarios. These differences not only affect their performance but also determine their suitability for specific environments. To better understand the characteristics of these two types of gate valves, we will compare them in detail across five key aspects: structural design, operational speed, flow resistance and wear resistance, sealing performance, and application scenarios.

Structural Design


The double disc gate valve consists of two discs symmetrically positioned on either side of the valve body. Each disc can move independently, and when the valve is closed, the two discs come together tightly in the middle of the valve, creating a reliable dual-sided seal. This design not only enhances the sealing performance but also extends the valve's lifespan by adapting to the pressure distribution of the medium in the pipeline.

In contrast, the single disc gate valve has a simpler design with only one disc that operates on one side of the valve body. While this straightforward design results in fewer components and lower manufacturing and maintenance costs, the single disc gate valve may not match the sealing performance and longevity of the double disc gate valve. This is mainly because, upon closing, the sealing surface of a single disc gate valve only contacts one side, which may lead to a higher risk of leakage.

Operational Speed


When it comes to operational speed, double disc gate valves generally operate more slowly because they require the simultaneous movement of two discs. This slower operation is suitable for scenarios where frequent switching is not necessary, offering better sealing and durability in the process. The gradual opening and closing process allows the discs to seal tightly, effectively preventing leakage and thereby extending the valve's lifespan.

Single disc gate valves, on the other hand, operate more quickly as they only need to move one disc. This faster operation makes them ideal for applications requiring quick responses, such as emergency situations or systems that necessitate frequent operation. The quick opening and closing capability of single disc gate valves can significantly enhance the overall efficiency of such systems.

Flow Resistance and Wear Resistance


In terms of flow resistance and wear resistance, the design of double disc gate valves can result in greater resistance to fluid flow. As the fluid passes through the valve, it needs to navigate the channel between the two discs, which increases friction and resistance. However, this design also provides better wear resistance because the dual discs can effectively disperse the fluid's erosive forces, reducing wear on any single part of the valve and thus prolonging its service life.

Single disc gate valves offer lower flow resistance since the fluid only needs to pass through one disc, resulting in less friction and higher efficiency. However, due to their simpler design, the fluid's erosive force is concentrated on the single disc, which may lead to quicker wear over time, potentially affecting the valve's performance and lifespan.

Sealing Performance


Sealing performance is a critical factor in evaluating the quality of a valve. Double disc gate valves, with their dual-disc design, provide a dual-sided seal when closed, significantly enhancing their sealing capability. This is particularly beneficial in high-pressure or high-temperature environments, where the double disc structure can better accommodate pressure fluctuations, reducing the risk of leakage. Additionally, double disc gate valves require less precision in the sealing surface angle, and they are less likely to jam due to temperature changes. When wear occurs on the sealing surface, it can be compensated by adding shims.

Although single disc gate valves have a simpler structure, they demand higher precision in the sealing surface angle, and even minor deviations can result in poor sealing. Moreover, due to the characteristics of the single disc design, jamming can occur more easily in environments with significant temperature fluctuations, potentially affecting the valve's normal operation.

Application Scenarios


Double disc gate valves are widely used in piping systems that carry water, steam, and other media, especially in environments where high sealing performance and long-term use are required. Their design is well-suited to harsh conditions such as high pressure and high temperature. Even when the sealing surface wears out, the valve can continue to function with simple maintenance. However, the more complex structure of double disc gate valves and their numerous components make them prone to sticking when used with viscous media, which can compromise the sealing effect. Additionally, long-term use may lead to corrosion of the upper and lower guides, which can affect the stability of the discs.

Single disc gate valves, due to their fast operation and simple structure, are suitable for scenarios requiring frequent operation or quick response. For example, in the chemical and petroleum industries, single disc gate valves are often used in piping systems that require rapid fluid switching. However, their high precision requirements for the sealing surface angle and potential jamming issues during temperature changes may limit their effectiveness in certain demanding applications.

Both double disc gate valves and single disc gate valves have unique characteristics, and choosing between them requires careful consideration of the specific application needs. Double disc gate valves, with their complex structure, excel in sealing performance and are suitable for harsh conditions such as high pressure and high temperature. In contrast, single disc gate valves, with their simpler design and faster operation, are ideal for situations requiring quick response. Understanding the differences and advantages of each type will help engineers and technicians make the best choice when designing and maintaining industrial systems, ensuring the reliability and efficient operation of these systems.
