Pneumatic Actuated Ball Valve, ASTM A182 F304, DN25, PN25
Key Specifications / Features
Model no.: JSC-240428-FBV-02
Hits: 13
Explore our range of pneumatic actuated ball valves, meticulously engineered with a floating type design and a sturdy 2-piece body forged from high-quality ASTM A182 F304 material. Available in a versatile 1-inch size (DN25) and boasting a robust Class 300 LB (PN25) pressure rating, these valves deliver exceptional reliability and precise control for a wide array of industrial applications. With their full-bore configuration and RF ends, they ensure efficient fluid flow and seamless integration into your piping systems.
Request a quote
Tags
Detail Information
Pneumatic Actuator Forged Floating Ball Valve
Valve description: Ball valve, floating type, soft seat, bolted bonnet, two pieces 2PC, forged stainless steel, full bore, anti-static, fire-safe design, anti-stem blowout
Body material: ASTM A182 F304
Ball material: ASTM A182 F304
Nominal diameter: DN25 (1 Inch)
Nominal class: PN25 (Class 300 LB)
End connection: RF
Seat: RPTFE
Face to face: ASME B16.10
Design / Manufacture: API 6D
Mode of operation: Double acting pneumatic actuator
Test and inspection: API 598

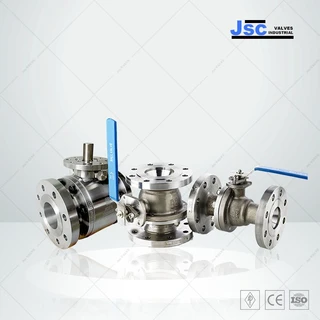

The Forged Floating Ball Valve features either a 2-piece or 3-piece forged steel body. It offers various connection types, including FF, RF, RTJ Flange, NPT, BW, and SW ends. Reduced Bore and Full Port options are available upon request.
We manufacture the following ball valves:
Side Entry Design Forged Ball Valves
End Entry Floating Ball Valve
Long Pattern Forged Ball Valve
Short Pattern Forged Ball Valve
SIZE RANGE AND PRESSURE CLASS
Size Range: 1/2 Inch to 8Inch (DN15-DN200)
Pressure Range: Class 150 LB to 600 LB (PN16-PN100)
DESIGN STANDARDS
Design / Manufacture: MFG, API 6D, API 608, ISO 17292, EN-12516, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351
Face to Face Length (Dimension): MFG, API 6D, ASME B16.10, EN 558-1, GB/T 12221, DIN 3202
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208, BS 6755-1
TECHNICAL FEATURES
- ASME B16.34 Compliance: Meets all standards.
- API Compliance: Conforms to API 608, API 6D, and BS5351.
- Fire-Safe Design: API 607 6th Edition approved.
- NACE MR0175 Compliant: Suitable for sour service.
- Submerged Packing System: Includes direct mount actuation.
- ISO Actuator Mounting Pads: Standard on all sizes.
- Stainless Steel Handles: Equipped with standard locking and bracket.
- High-Temperature Seats: Second-generation PTFE for better performance.
- Electrically Grounded Components: Standard ball and stem grounding.
- Easy Disassembly: Body studs and nuts for all sizes.
- Forged Material: Ensures dependable quality and performance.
- Corrosion Protection: ASTM A961 coating.
- Swing Out Construction: Facilitates easy installation.
- ISO Integral Mounting Pad: For actuator attachment.
- Anti-Static Device: Prevents static build-up.
- Blowout Proof Stem: Provides additional safety.
