Three Eccentric Butterfly Valve, EN 593, 2-128 IN, 150-900 LB

Three Eccentric Butterfly Valve

The three-eccentric laminate hard seal flange butterfly valve is designed for long-lasting performance and energy efficiency. It utilizes a three-dimensional core principle for its structure, featuring a valve seat with a laminate stainless steel and graphite composition that combines hard and soft sealing properties. The valve's construction includes the valve body, butterfly disc, laminate seal as the valve seat, valve stem, and transmission mechanism. This advanced technology and precise manufacturing make it suitable for a wide range of applications, including metallurgy, power generation, petroleum, chemical industries, air, gas, combustible gases, and water supply and drainage systems.

Three Eccentric Butterfly Valve-Features

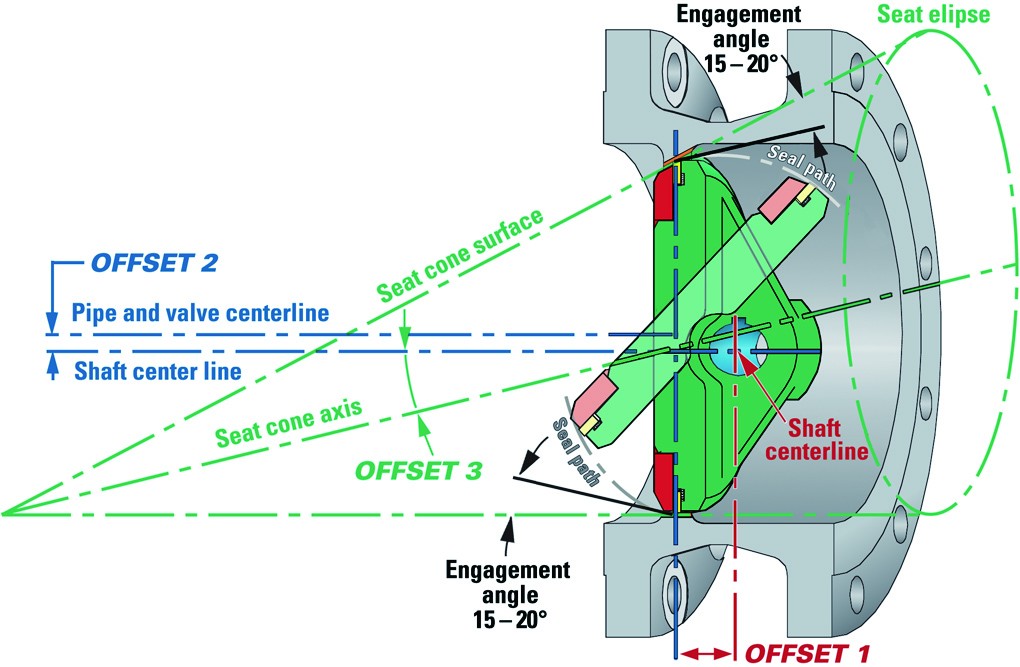

The three-eccentric (or offset) design features three distinct eccentricities:

First Eccentricity: The shaft is offset from the centerline of the sealing face.
Second Eccentricity: The shaft is offset from the centerline of both the pipe and the valve.
Third Eccentricity: There is a specific angle between the oblique taper of the eccentric seat and the pipe's centerline, ensuring that the seat completely disengages from the sealing ring throughout the opening and closing process.

This design leverages a cam effect to minimize abrasion and prevent leakage by ensuring that the seat and sealing ring do not come into contact during valve operation.



1. Elastic Composite Metal Sealing Ring: Provides zero leakage due to its superior elastic properties.
2. Torque Seal: Ensures zero leakage in both directions.
3. STL One-Piece Hard Surface Seat: Adapts to various working conditions, offering long service life and easy maintenance.
4. One-Piece Cast Body: Conforms to face-to-face dimensions of ISO 5752, ASME B16.10, and API 609, allowing for easy and flexible installation as a replacement for high-performance butterfly valves and other types.
5. Intrinsic Fireproof Property: Achieved through an all-metal structure and leak-tight performance.
6. Anti-Blowout Stem: Provides high dependability and fully complies with API 609 standards.
7. Stem Connection: The stem and disc are connected via a key or pin-key combination in the triple eccentric butterfly valve.

Three Eccentric Butterfly Valve-Specifications and Materials

1. Designed: API 609, ASME B16.34, AWWA C504, BS EN 593
2. Face to Face: API 609, AWWA C504, BS 2080, and ISO 5752
3. Flange End: ASME B16.5, ASME B16.47, BS EN 1092, ISO 7005, GOST
4. Inspection Test: API 598, BS EN 12266, ISO 528
5. Materials Choose Body Materials: Carbon Steel ASTM A216 WCB, WCC, Low Temperature Carbon Steel ASTM A352 LCB, A352 LCC, A352 LC1, A352 LC2; Alloy Steel Chrome Moly ASTM A217 WC6, A217 C5, A217 WC5, A217 C12, A217 C12A, A217 WC9, 1.7335, 1.7380, 1.7362, 1.7386, 1.4903; STAINLESS STEEL ASTM A351 CF3, A351 CF8, A351 CF3M, A351 CF8M, A351 CF8C, 1.4301, 1.4306, 1.4401, 1.4404, 1.4550, 1.4438; ALLOY 20 ASTM A351 CN7M, N08020, 1.4438; DUPLEX STEEL 2205 ASTM A351 CD3MN, A890 2205, S31803, 1.4462; SUPER DUPLEX STAINLESS STEEL ASTM A351 CD4MCu, A890 5A, S32750, 1.4501; SUPER DUPLEX F55, ASTM A995 CD3MWCuN, S32760
6. Disc material: ASTM A216 WCB, WCC, ASTM A352 LCB, ASTM A351 CF8M, CF3M, CF8, CF3, ASTM A890 4A, 5A, ALLOY 20, duplex stainless steel, Monel, hastelloy steel
7. Seat Materials: SS 304+graphite, SS 316+Graphite, PTFE
8. Pressure: PN10, PN16, PN25, PN40, PN63, PN100, 150 LB, 300 LB, 600 LB, 900 LB (PN10-PN100, Class 150-900 LB)
9. Size: DN50-DN3200, 2 Inch - 128 Inch
10. Drive Mode: Manual/Worm gear/Electric/Pneumatic
11. Field of Application: Electric/Hydraulic/Municipal Engineering etc; Water/Sea water/Gas etc.
